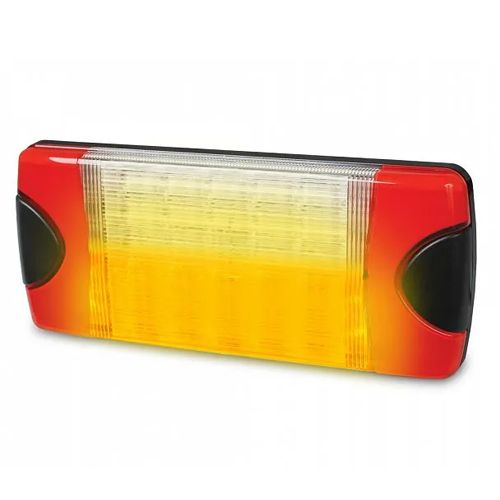

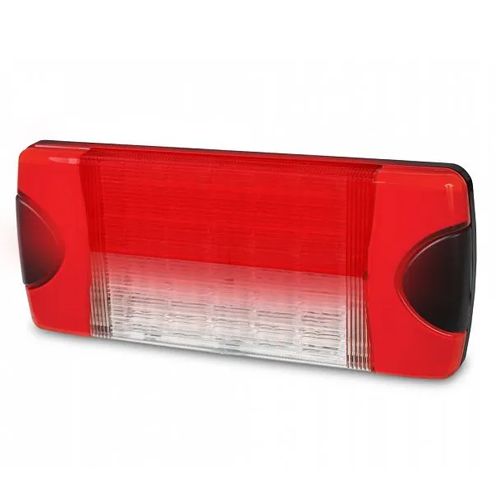

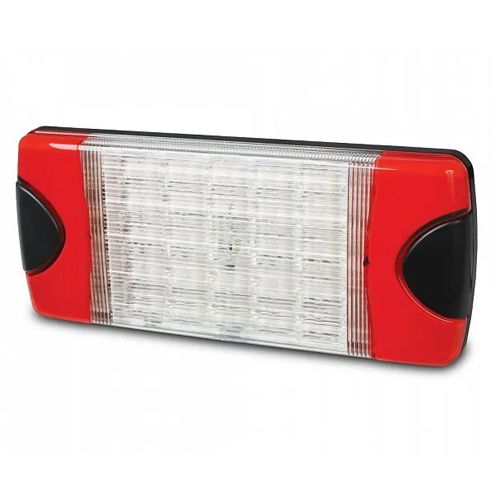

Hella DuraLED Combi-S - Heavy Duty

(0 reviews)
Stock Code:
432378
Hamilton
In Stock
Christchurch
In Stock
Price:
$208.69 Excl. GST

Hella PART NO: 2SD 980 613-201
Hella Legacy PART NO: 23786M

Specifications

Optics: Optic appears clear untill illuminated
Mounting: Surface mount. Suitable for horizontal mounting
Voltage: Multivolt for optimum brightness in 12 and 24 volt systems.
Power Consumption Stop: <1W
Power Consumption Rear Position: <1W
Power Consumption Rear Direction Indicator: <1W
Protection: Reverse polarity protection.
Protection: IP 6K6   (Protection against dust and high pressure water jets)
Protection: IP 6K7   (Protection against dust and temporary water immersion)
Cable Length: Pre-wired with 6m of sheathed multi-core cable.
Lens Material: Grilamid
Compliance: ADR 49/00, ADR 6/00:Cat2a, ISO 13207-1, 5883, ECE R6/01, ECE R7/02

Optics

Optic appears clear until illuminated

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption
Stop: 5W
Rear position: 1W
Rear direction indicator: 5W

Protection
Reverse polarity and 5000 watt Transient Voltage Suppressor(TVS)
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length
P/Ns 2378/...-BL/...-BULK/...-CS Pre-wired with 2.5m of sheathed multi-core cable.
P/Ns 2378-6M/...6MBULK Pre-wired with 6m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance
ADR 6/00: Cat 2a ADR 49/00 ISO 13207-1 (2378-CS only) CE
E24 5883 ECE R6/01 ECE R7/02
