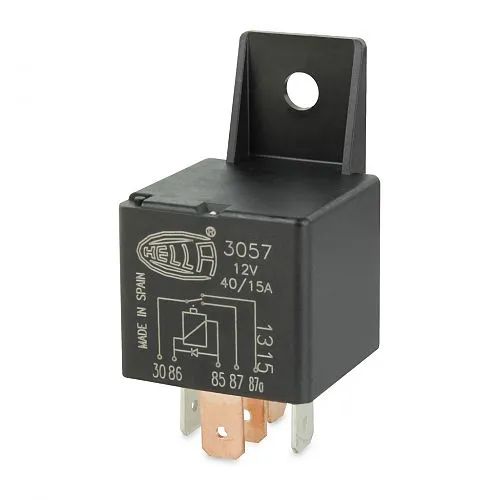

Hella 12V 5 Pin Change-over Mini Relay - 40/15A - Diode

(0 reviews)
Stock Code:
433057
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$24.19 Excl. GST

Hella Part NO: 4RD 905 330-023
Hella Legacy Part NO: 3057



Production expertise: HELLA produces more than 100 million relays per year. Thanks to optimised production we can offer a competitive price for customers. HELLA relays have an extremely low failure rate.

OEM customers: HELLA develops and produces relays for AGCO, Claas, Daimler AG, Ford, VW, GM, JCB, Opel, Nissan, John Deere, Chrysler and Jaguar/Land Rover among others. We have been working with many customers for decades.

Voltage

12V

Pins

5 Pin

Function

Change-over

Protection

Diode

Pin Designations
Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
87a/4 Alternative output (1st output, break side).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load
Terminals Amperage
30-87 40A
30-87a 15A

Current Draw

170mA

Bracket

Yes
