Bendix MV3 Module Control Valve - 5005646

(0 reviews)
Stock Code:
170184
Hamilton
Out of Stock
Christchurch
Out of Stock
Price:
$514.37 Excl. GST
Unavailable for Online Purchase
Notify When in Stock

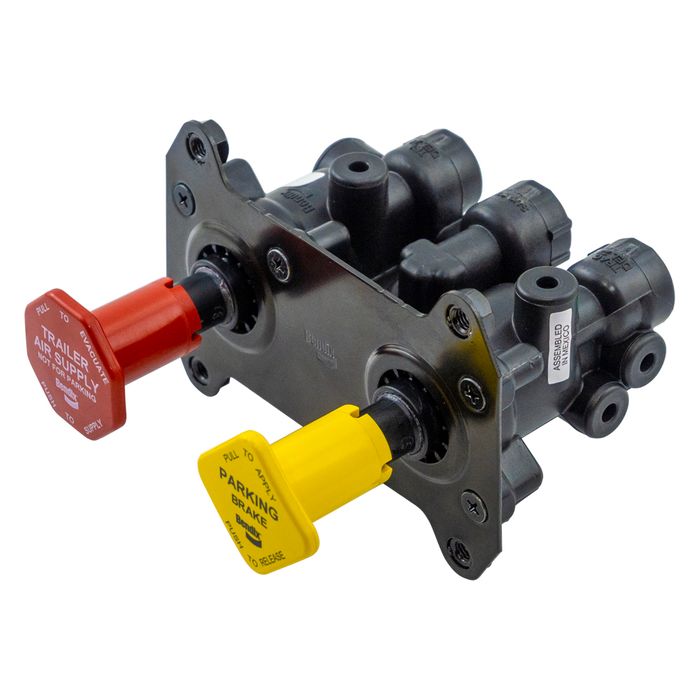

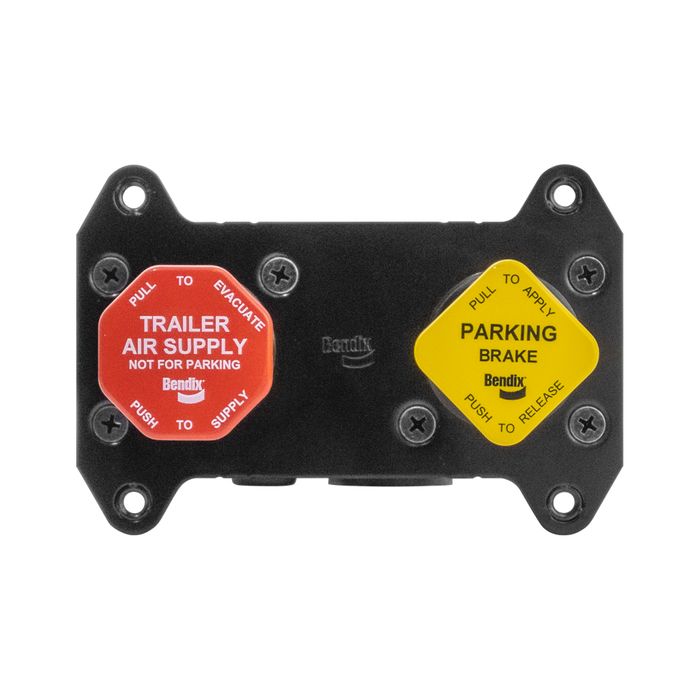

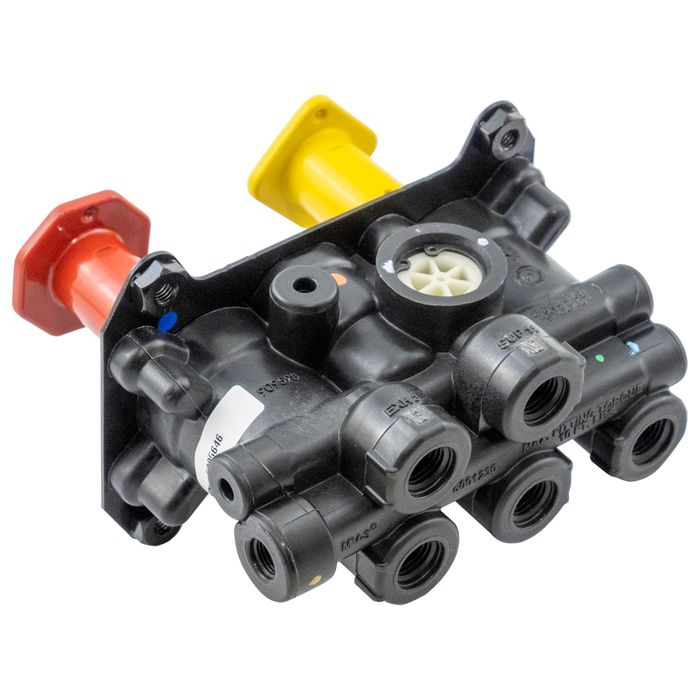

The Bendix® MV-3® dash control module is a two-button, push-pull control valve housed in a single body that accommodates dual circuit supply through a double check valve. The MV-3 valve can duplicate the functions of any existing two- or three- valve push-pull system and has the advantages of reduced plumbing. The MV-3 valve body, plungers and spools are made out of a non-metallic, non-corrosive material. All air connections are at the back of the valve with the exception of the optional auxiliary port as shown in Figure 1.

The MV-3 valve provides the following functions:
1 - Tractor Protection
2 - Trailer Service Air Control
3 - System Park
4 - Trailer Park Only
5 - Trailer Charge with Tractor Spring Brakes Applied
(Tractor Park Only)
6 - Primary & Secondary Reservoir Connections
7 - Dual Supply Reservoir Isolation via the Check Valve

Related:

  • 800517
  • 801631
  • 5005646
Mounting:  M6 x 1-6H (4x)
Supply 11 Port:  1/4-18 NPT
Supply 12 Port:  1/4-18 NPT
Delivery 21 Port:  1/4-18 NPT
Delivery 22 Port:  1/4-18 NPT
Exhaust Port: 1/4-18 NPT
Auxiliary Port:  1/8-27 NPT
Tractor Trip Pressure:  30 ± 10 PSI
Trailer Trip Pressure:  35 ± 10 PSI
Trailer Override Pressure:  25 ± 5 PSI
Button(s) Included:  Yes
Maximum Operating Temp:  93 °C
Minimum Operating Temp:  -40 °C
