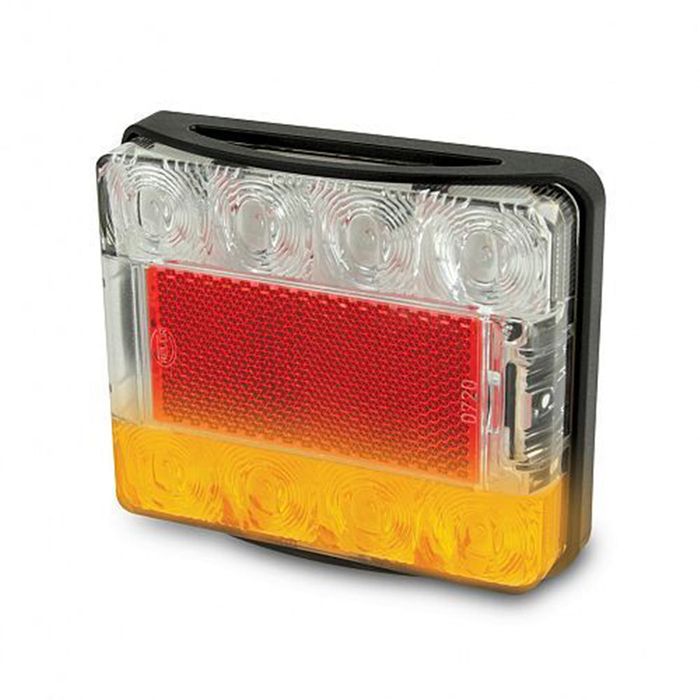

Hella 2394 LED Combination Lamp

(0 reviews)
Stock Code:
438778
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$106.37 Excl. GST

Combination lamp, functions as a stop, rear position and rear indicator light.

Small but powerful: Meet the complex all rounder, HELLA’s compact size LED lamp featuring stop, rear position and rear direction indicator lamp with a 18cm² red retro reflector. Sophisticated clear lens design with black mounting base. Optic appears clear until illuminated.

  • Suitable for small/medium utes, trucks, trailers
  • Convenient mounting base with multiple fixing points
    Easy fitment to most trailers/vehicles.
  • Better Visibility - More Safety
    Distinctive lit up appearance on rear position/stop function increases visibility and awareness
  • Low power consumption - Long service life
    Economical running costs
  • Tough under pressure
    Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.
  • Grilamid® Lens
  • Reliable - durable - ultra long service life
    Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.
  • RFCommSafe™

Optics

Optic appears clear until illuminated

Mounting

Surface mount with choice of mounting holes. Lamp clips into mounting base.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption
Stop: 2W
Rear position: 1W
Rear direction indicator: 2W

Protection
Reverse polarity and transient spike circuit protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length
2394 Pre-wired with 0.5m of sheathed multi-core cable.
2394-6M Pre-wired with 6m of sheathed multi-core cable.

Spare Part
9.2394.08 Mounting base
9.2394.09 Mounting spacer (not included)

Lens Material

Grilamid®

Compliance
ADR 6/00: Cat 2a ADR 47/00 ADR 49/00
