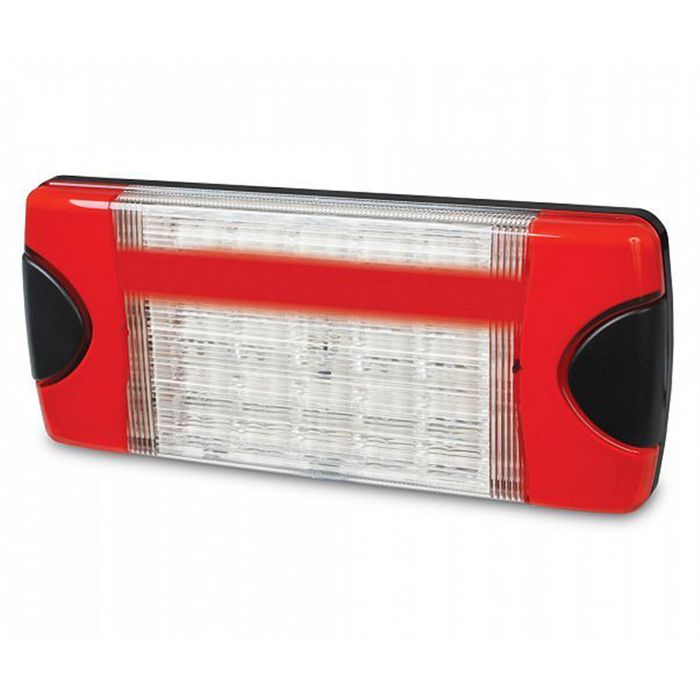

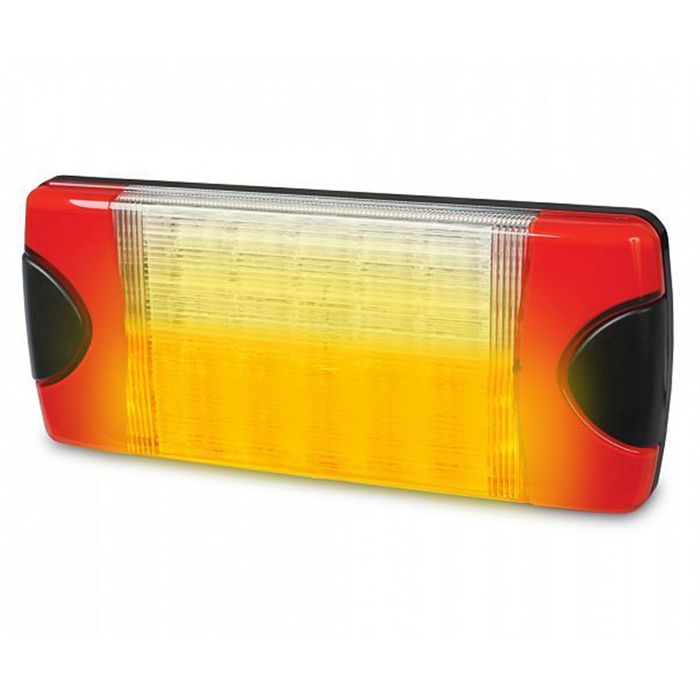

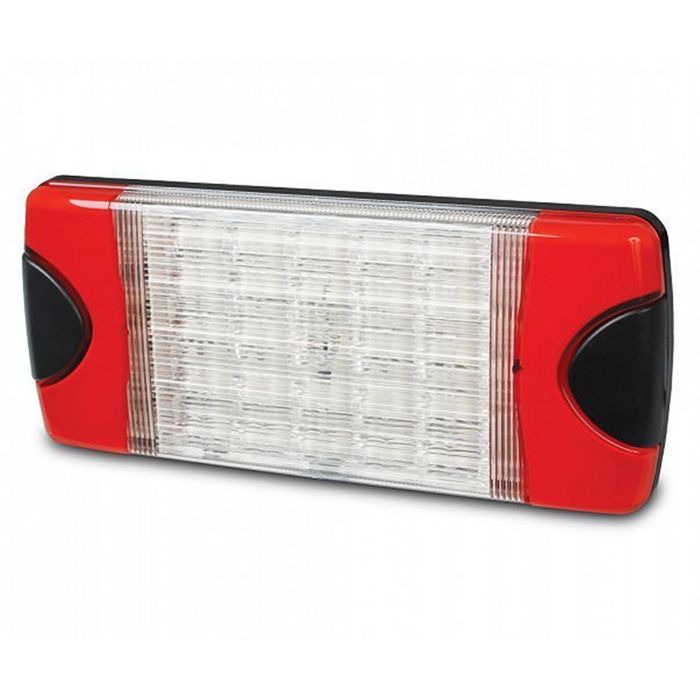

Hella 2378 DuraLED Combi-S Rear Lamp

Stock Code:
434028
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$199.72 Excl. GST

Hella Part No: 2SD 980 613-001
Hella Legacy Part No: 2378

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
'Fit & Forget' by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Suitable for commercial and boat trailers

Super slim profile – Iconic Design

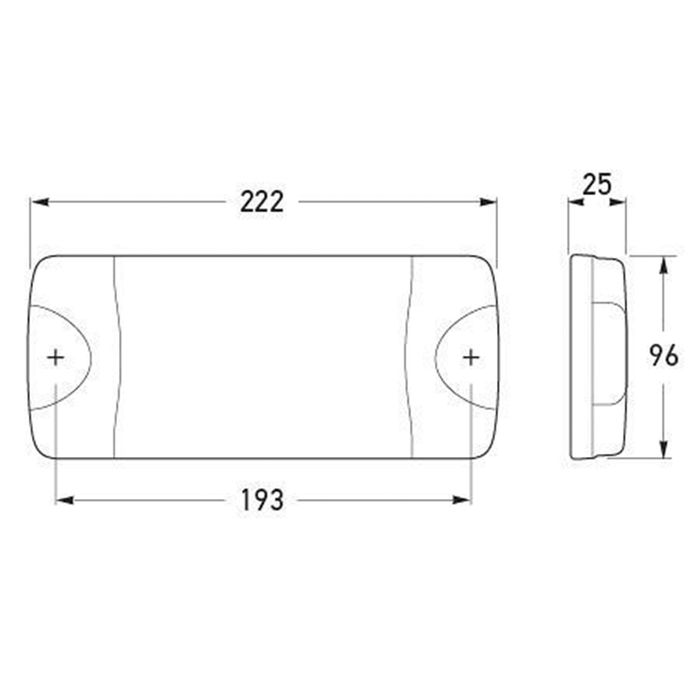

The new evolution of the DuraLED® Combi features a depth of just 25mm.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Hella Compatibility Solution HCS
Hella P/N 2378-CS features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA 24V HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard.
Note: Lamp is not compatible with 12V HCS units.

Optics

Optic appears clear until illuminated

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W
Rear position: 1W
Rear direction indicator: 5W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor(TVS)
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

P/Ns 2378/...-BL/...-BULK/...-CS Pre-wired with 2.5m of sheathed multi-core cable.
P/Ns 2378-6M/...6MBULK Pre-wired with 6m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

ADR 6/00: Cat 2a ADR 49/00 ISO 13207-1 (2378-CS only) CE
E24 5883 ECE R6/01 ECE R7/02
