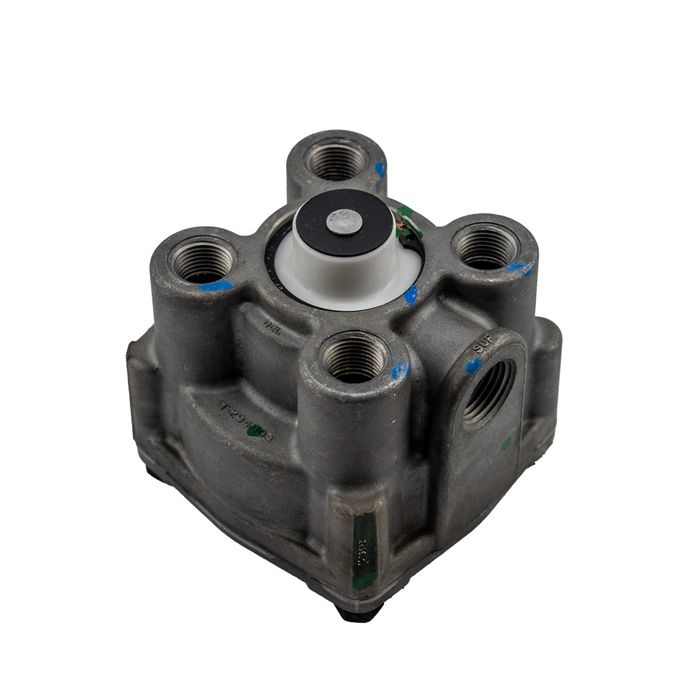

Bendix R12 Relay Valve

(0 reviews)
Stock Code:
179002
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$152.07 Excl. GST

The relay valve in an air brake system functions as a relay station to speed up the application and release of the brakes. The valve is normally mounted at the rear of the vehicle in proximity to the chambers it serves. The valve operates as a remote controlled brake valve that delivers or releases air to the chambers in response to the control air delivered to it from the foot brake valve or other source. The R-12® and R-14® relay valves are designed for either reservoir or frame mounting. A universal mounting bracket is furnished that permits easy interchange with other Bendix® relay valves.



Also known as: Midwest WA65104, Automann 170.065104, Keene K065104, A86473, Bendix 65104, Bendix 065104, Euclid E-BN065104N, Dayton AV065104, Newstar S-19390. OEM # 102165, 102276, 102278, 102280, 102615, 102971, 103059, 104546, 104653, 107134, 5000876, 5002559, 5002560, 5002561, 5003365, 5005590, 5006110, 5006111, 5006416, 5006417, 5008066, K019656, 102276N.

Body Configuration:  1 SUP / 4 DEL (V)
Supply Port 1: 1/2-14 NPT
Control / Secondary Service Port:  1/4-18 NPT
Delivery Port 1: 3/8-18 NPT
Delivery Port 2: 3/8-18 NPT
Delivery Port 3: 3/8-18 NPT
Delivery Port 4: 3/8-18 NPT
Exhaust Port: Dust Shield
Crack Pressure: 4.0 PSI
TMC Washer: RV040
Maximum Operating Temp: 93 °C
Minimum Operating Temp: -40 °C
